型號 Model |
排出口徑 Drain-out aperture mm |
流量 Flow m³/h |
揚程 Head m |
轉速 Speed r/min |
功率 Power kW |
效率 Efficiency % |
重量 Weight Kg |
|
150WQ250-22-30 |
φ150 |
250 |
22 |
1450 |
30 |
73 |
500 |
|
150WQ180-30-30 |
φ150 |
180 |
30 |
1450 |
30 |
73 |
500 |
|
150WQ200-30-37 |
φ150 |
200 |
30 |
1450 |
37 |
70 |
600 |
|
150WQ150-35-37 |
φ150 |
200 |
35 |
1450 |
37 |
63 |
600 |
|
150WQ160-45-37 |
φ150 |
160 |
45 |
1450 |
37 |
65 |
650 |
說明：JYWQ型自動攪勻潛水排污泵性能參數(shù)等同WQ型潛水式排污泵(見上表)。外形尺寸見下頁。
Note: the parameters of model JYWQ autostirring submersible sewage pump are identical to those of model WQ submersible sewage pump (see the table above), see the next page for the out-form dimensions. |

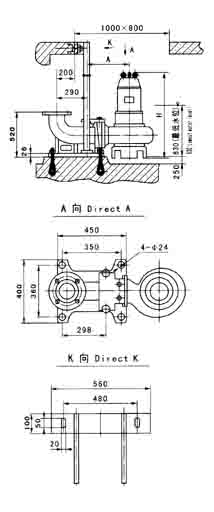

自動耦合式安裝
Auto-coupling
installation
|

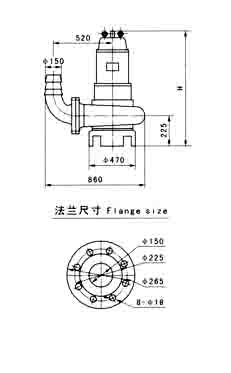

軟管移動式安裝
Hose
movable installation
|
注：JYWQ型自動攪勻排污泵其安裝尺寸參照WQ型潛水排污泵進行。
Note：refer to model WQ
submersible sewage pump for the installation dimensions of model JYWQ auto-stirring
sewage pump．
|
|
型號Model |
H |
A |
B |
C |
|
150WQ250-22-30 |
1400 |
550 |
900 |
600 |
|
150WQ180-30-30 |
1400 |
550 |
900 |
600 |
|
150WQ200-30-37 |
1500 |
580 |
1000 |
700 |
|
150WQ150-35-37 |
1500 |
580 |
1000 |
700 |
|
150WQ160-45-37 |
1500 |
580 |
1000 |
700 |
